1-2 Tonne Mini Digger Excavator Land Rake Bucket

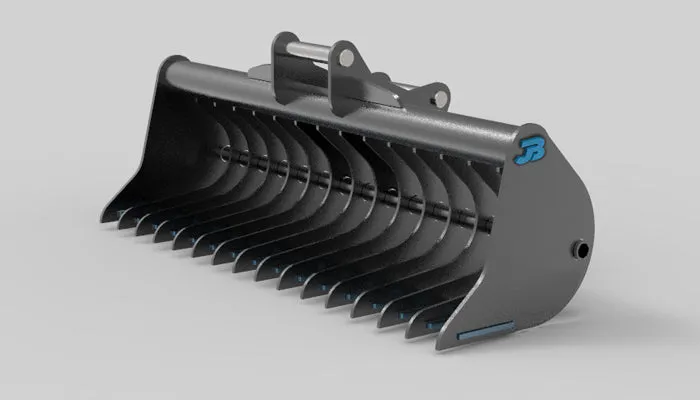

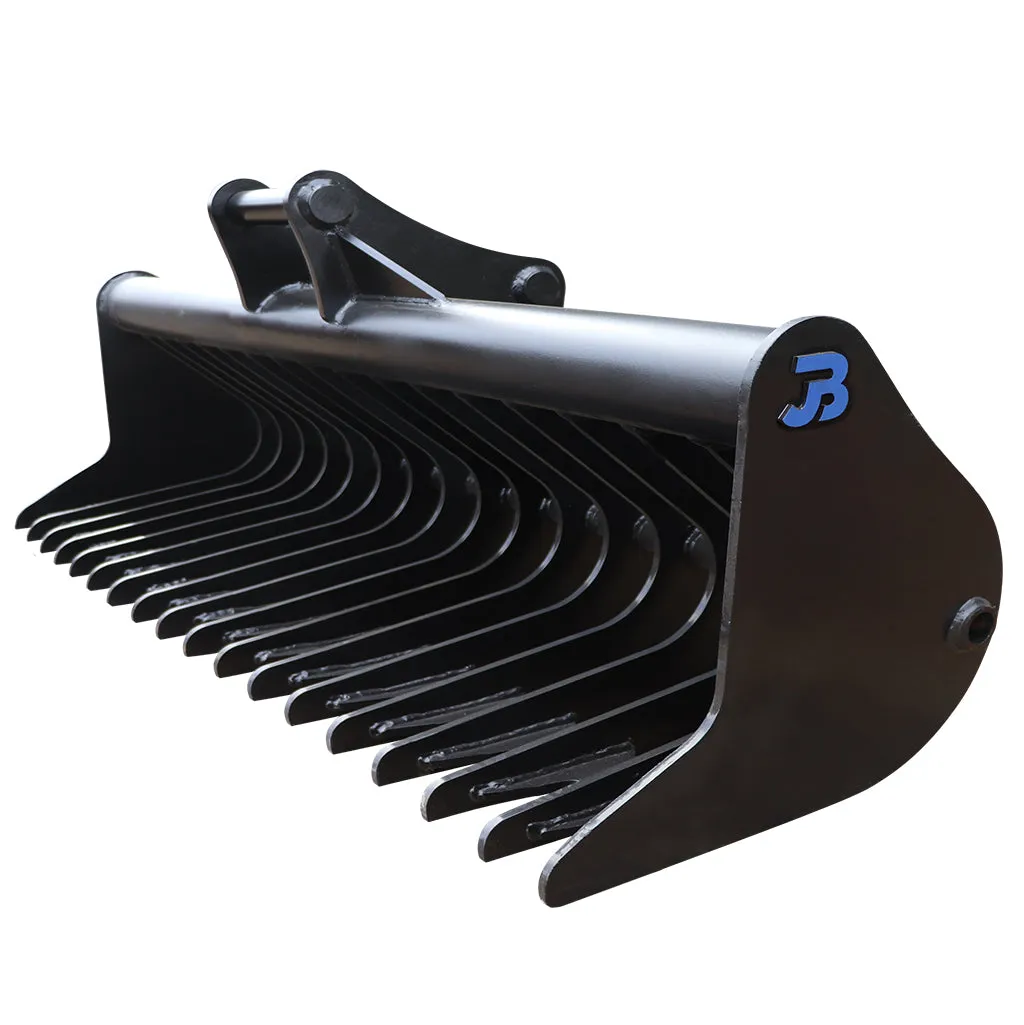

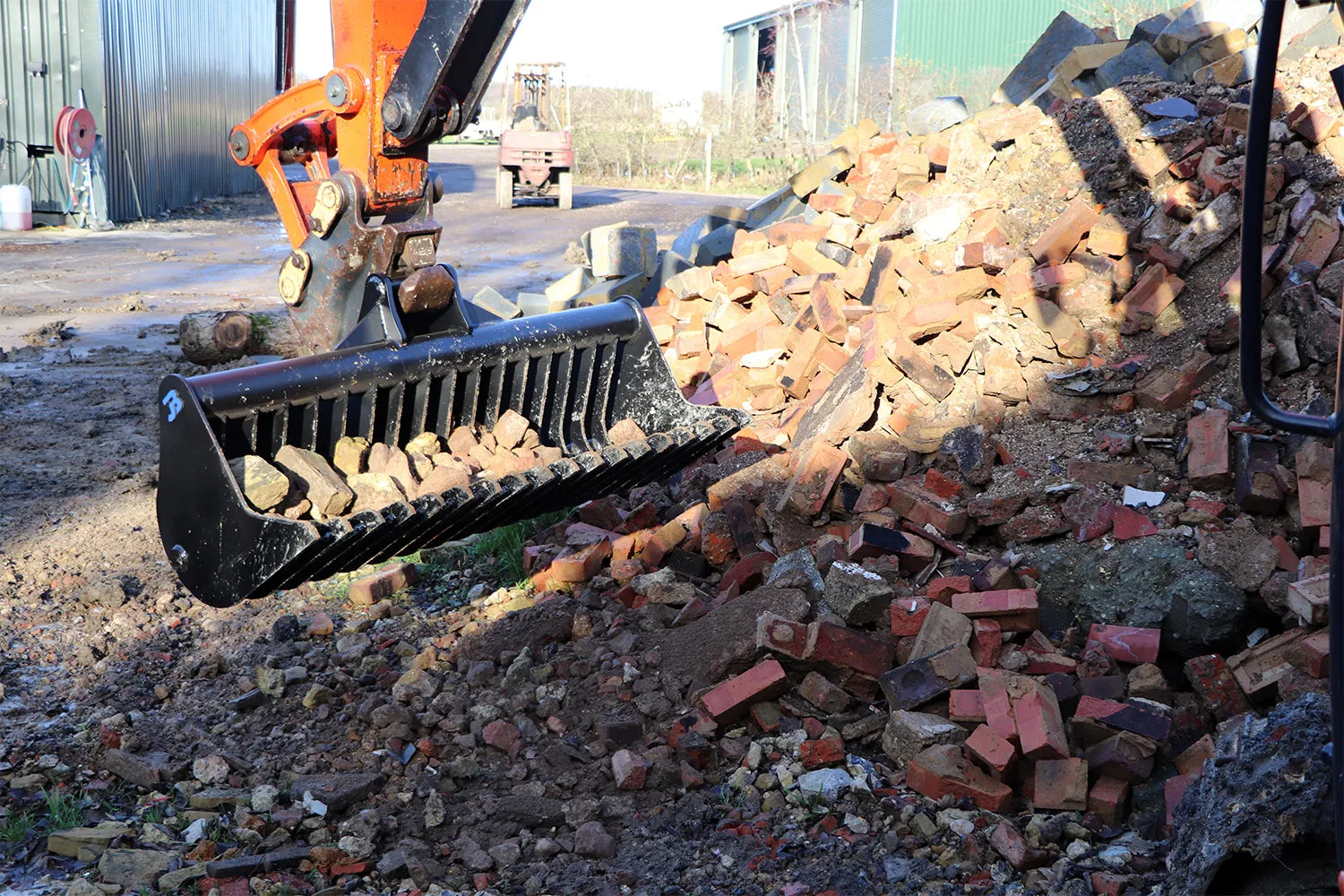

The JB General Purpose Excavator Land Rake is one of the most popular attachments supplied. It is the ideal tool for a range of landscaping applications and is often used as a hybrid riddling bucket for sorting stones from soil. The 010 model is a suited to a range of mini diggers and owner operators, for both domestic and small scale commercial purposes.
The land rake has been specially designed for use on 1-2 tonne excavators such as a Takeuchi TB216 or similar. Its compact size and weight make it perfect for this range of excavators. The land rake has many uses such as ground clearance, topsoil raking and sorting. It is widely used by groundwork's contractors, farmers and small holding operators.

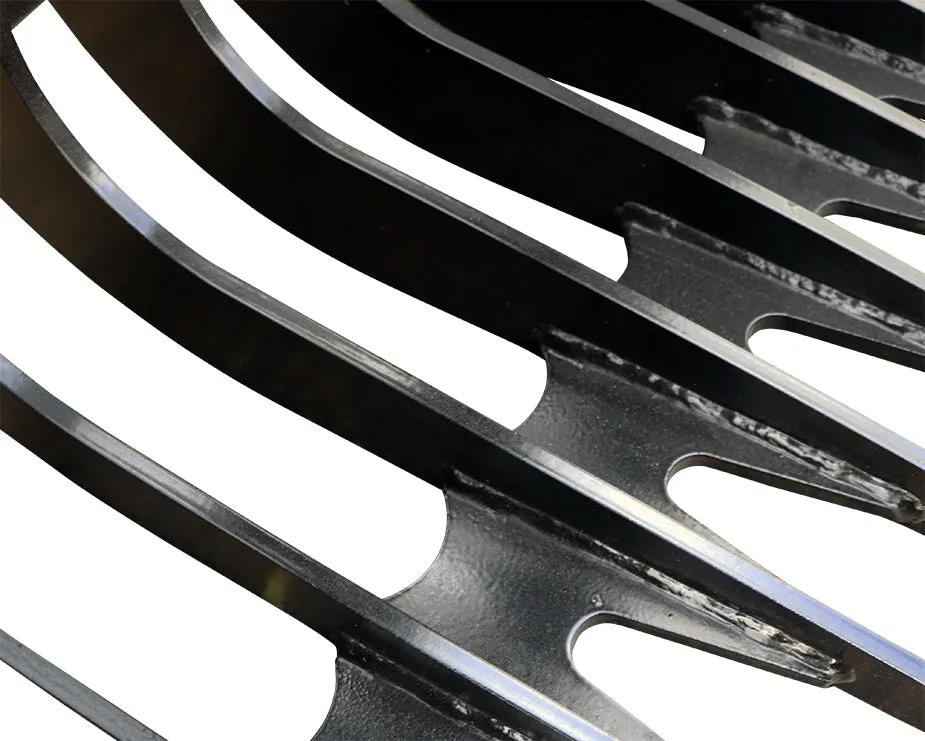

The shape has been designed and tested for optimal performance when handling material. Unlike a standard ditching bucket curve, the side plates have an angular profile to provide maximum efficiency when sorting, picking and carrying. The internal tines are positioned at 3” spacing's (other spacing's available on special order). With 8 mm tine tips that are able to infiltrate the ground it makes it a perfect tool for finishing work as well as general sorting.
Click on the interactive image above for specific details and benefits. Alternatively, please find other information below.
Specifications
You are currently viewing the 010-RAKE model to suit 1-2 tonne excavators
010-Rake Features
- Typical production lead time (can vary): 2-3 days
- Manufactured from standard 345 steel. Full Hardox models can be manufactured on request.
- Includes welded 2 pin excavator linkage

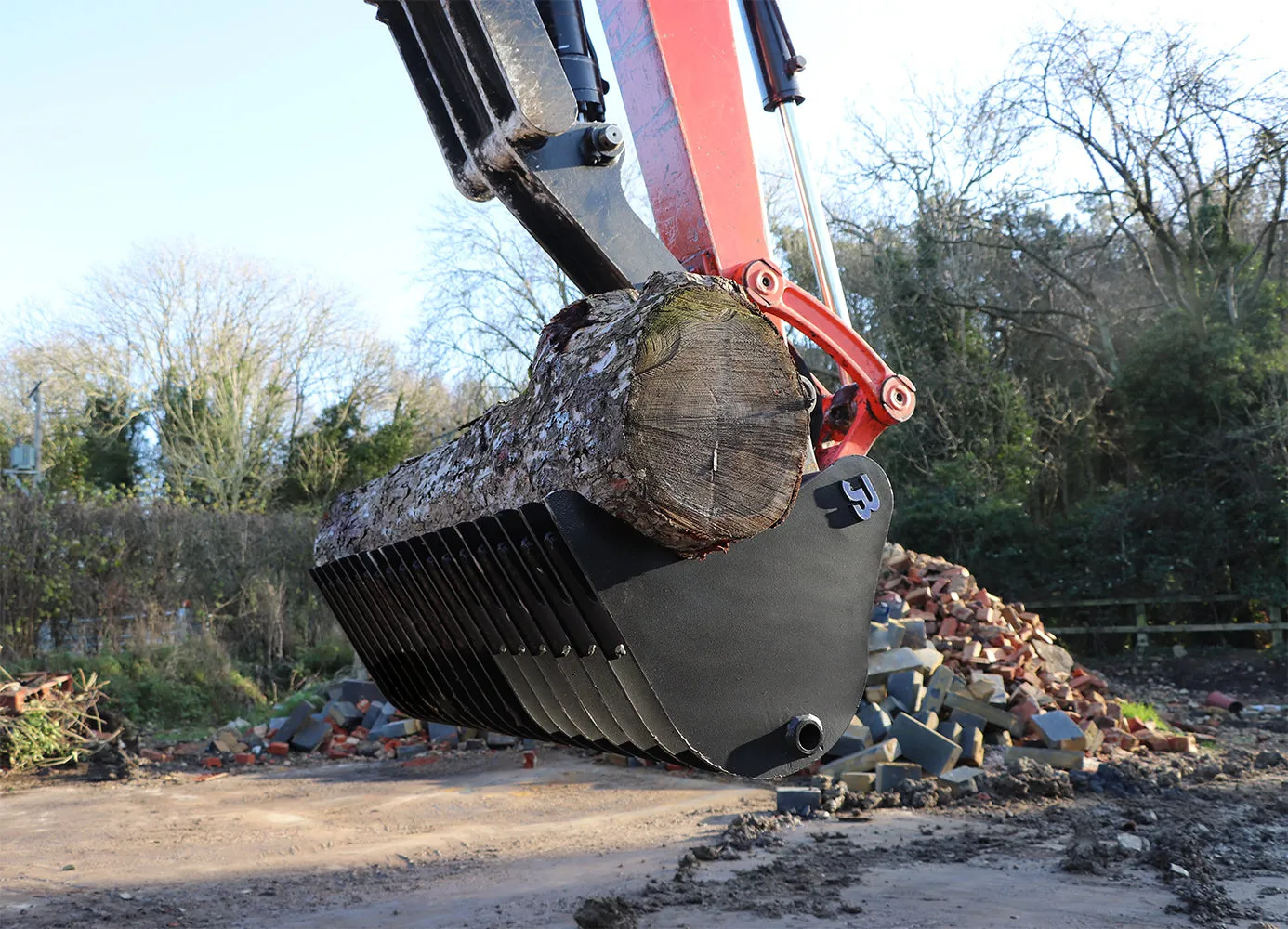

- Angular, V shaped side profile for carrying long timber
- 75m / 3" standard spacing's
